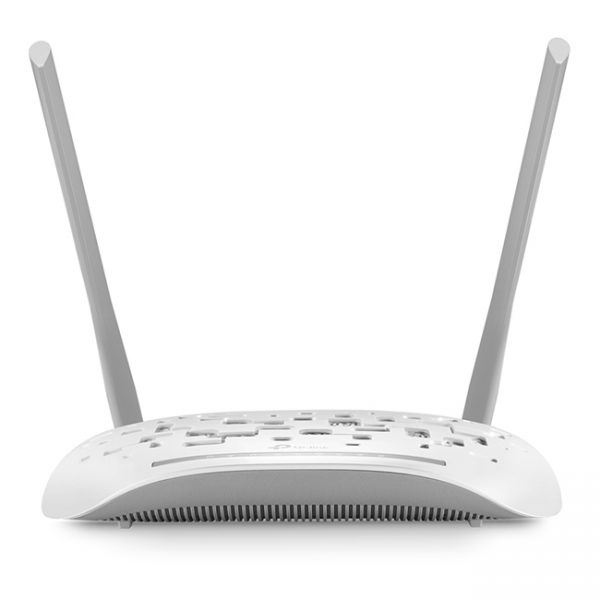

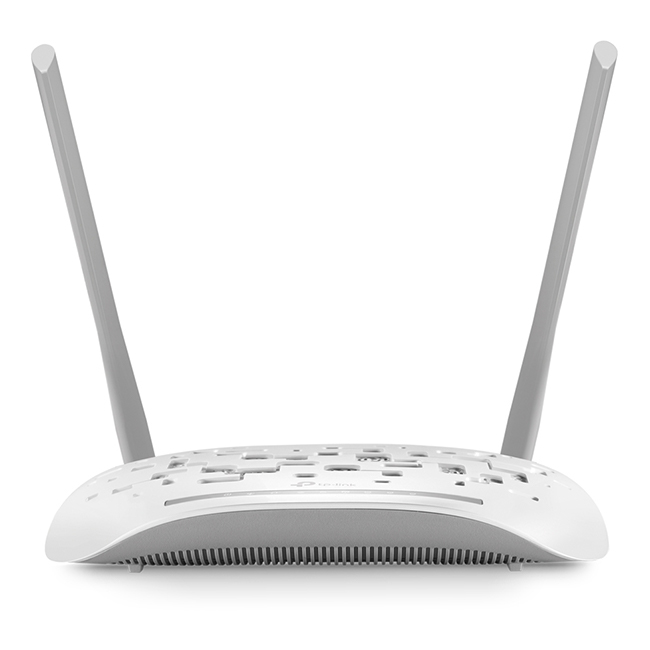

TP-LINK TD-W8961N 300MBPS FIXED ANTENNA WIRELESS N ADSL2+ MODEM ROUTER

TP-Link

TP-LINK 4-Port 300Mbps Wireless N ADSL2+ Router – Mediatek, 4x 100Mbps LAN Ports, ADSL/ADSL2/ADSL2+, Annex A, ADSL Splitter, 802.11n/g/b, SPI Firewall, NAT, IGMP Snoop V1/2Static Routing, VLAN 802.1P, DNS Relay, DDNS, MultiCast IGMP, Traffic Shaping

Overview:

TP-LINK’s TD-W8961N 300Mbps Wireless N ADSL2+ Modem Router is an incredibly robust all-in-one device that provides a full rate of ADSL2+ standard with the superb reliability and a cost-effective solution for home and small business. With the TD-W8961N, you can easily create a secure wireless network and share a high-speed internet connection while access to shared files, music, photos, and printers with multiple computers.ï��

Features:

One-Stop Solution
The TD-W8961N does the work of several networking devices packed into one sleek device. With an ADSL2+ modem, NAT router, 4-port switch and 300Mbps wireless N access point, this device eliminates the need to purchase multiple devices to access and share a high-speed internet connection.

Incredible Wireless Performance
With 300Mbps 802.11n wireless and 4 Megabit LAN ports, the TD-W8961N is the ideal choice for bandwidth heavy users that rely on speedy, reliable connections for bandwidth intensive work or entertainment such as lag-free conference calls, HD video streaming or online gaming.

Ideal for Multimedia Application
Port VLAN binds specific LAN ports and PVCs for differential services like IPTV. The TD-W8961N’s built-in QoS engine provides various QoS policies that help prioritize Internet traffic to enable smooth IPTV streaming and lag-free online gaming. Thus users can experience the benefits of a smooth network connection without worrying about traffic congestion. Combined with IGMP multicast and IGMP snooping features the TD-W8961N makes an ideal solution for multimedia applications.

Advanced Network Security and Flexible Management
The TD-W8961N utilizes NAT and SPI (stateful packet inspection) firewalls which inspect the contents of incoming packets before they are allowed in, preventing potential attacks from across the Internet. For added convenience, it supports access control based on MAC addresses, IP addresses, domain names or applications such as MSN or Yahoo Messenger, so that parents and network administrators can establish restricted access policies for children or staff. Aside from web configuration, the TD-W8961N also provides TR-069 and SNMP, which automatically update the device’s firmware and other settings when they become available from users’ ISP. All of these features help users to enhance their network’s security and make network management more flexible.

WPS
Instantly setup WiFi connections simply by pressing the “WPS” button with Utility.

Easy to Use
Either using the optimized user interface and setup wizard or the CD (included) setup wizard will allow you to get ‘online’ quickly and easily.

Brand

TP-Link

brands

Product Code TD-W8961N
HARDWARE FEATURES
Interface 4 10/100Mbps RJ45 Ports
1 RJ11 Port
Button 1 Power On/Off Switch
1 WPS Button
1 Wi-Fi On/Off Button
External Power Supply 9VDC/0.85A
IEEE Standards IEEE 802.3, 802.3u
ADSL Standards Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT)
ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1
ADSL2 Standards ITU-T G.992.3 (G.dmt.bis)
ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards ITU-T G.992.5
Dimensions ( W x D x H ) 7.7 * 5.1 * 1.4 in. (195 * 130 * 35 mm )
Antenna Type Omni directional, Fixed
Antenna Gain 2x5dBi
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, 802.11g, 802.11b
Frequency 2.400-2.4835GHz
Transmit Power <20dBm(EIRP)
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
Wireless MAC Filtering
SOFTWARE FEATURES
Quality of Service QoS Remarking based on IPP/ToS, DSCP and 802.1p
Port Forwarding Virtual Server, DMZ, ACL(Access Control List)
VPN Pass-Through PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC – Up to 8 PVCs
Advanced Features Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Mapping
VLAN, 802.1P
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS
IGMP snooping V1/2
IGMP Multicast
UPnP
Security NAT Firewall
SPI Firewall
MAC / IP / Packet / Application / URL Filtering
Denial of Service(DoS)
SYN Flooding
Ping of Death
Management Web Based Configuration(HTTP)
Remote management
Telnet management
Command Line Interface
SSL for TR-069
SNMP v1/2c
SNMP over EOC
Web Based Firmware Upgrade
CWMP(TR-069)
Diagnostic Tools
OTHERS
Certification CE, FCC, RoHS
Package Contents TD-W8961N
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Power Adapter
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista , Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux.
Environment Operating Temperature: 0 ~40 (32 ~104 )
Storage Temperature: -40 ~70 (-40 ~158 )
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
