  • 80 column dot-matrix printer.
  • High durability 9 pin print head.
  • Up to 570 characters per second print speed.
  • Multi-part paper handling (original + 5 copies).
  • The Microline 5520 has been designed for use in the harshest of operating environments whilst offering the highest levels of flexibility and performance with unparalleled reliability.

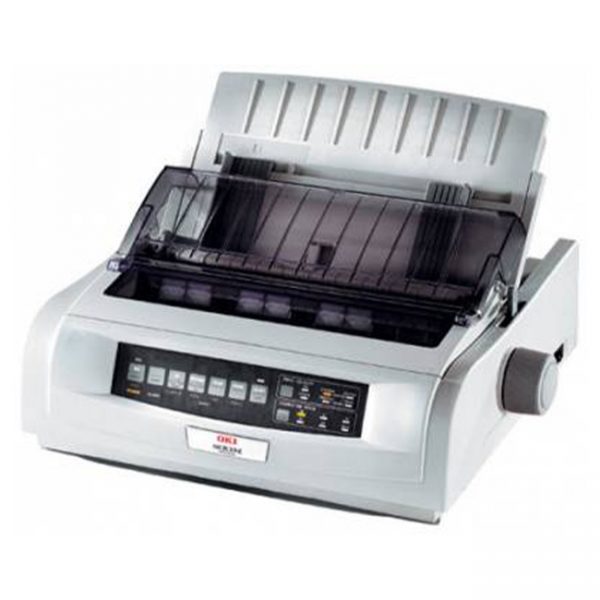

OKI ML5520 Dot Matrix Printer – 9 PIN, A4 / 80 Column up to 570 cps, 4 million caracter ribbon, Low Tear Capability, Character Pitch; 10/12/15/17.1/20 pitch, Up to 240 x 216 dpi, Emulation; Epson LX, IBM ProPrinter, OKI Microline, Connectivity; Centronics Parallel, USB 2.0, Automatic sheet Loading, Original + 5 copies, Paper parking, Low tear-off, Autoload single sheet,Push tractors, Bottom feed

SKU: 1308601 Categories: , ,




Product Code 1308601
Number of copies 6 (original + 5 copies)
Print speed(cps) Fastest: 570; High speed draft @ 10cpi: 507; Data/Letter quality @ 10cpi: 380/95
Printing width 80 characters (10cpi), 160 characters (compressed mode)
Accoustic noise 55dBA, 51dBA in quiet-mode
Voltage requirements 230V AC
Weight 7.5Kg
Frequency 50/60 Hz
Dimensions(H x W x D) 153 x 398 x 345mm
Print head life 200M characters
Reliability Print head life 200M characters; MTBF: 20, 000 hours
Paper Handling
Paper path 1 Bottom-feed: for specific applications, heavier paper and labels (optional pull-tractor required)
Optional paper handling Single-bin cut sheetfeeder, Double-bin cut sheetfeeder, Pull tractorfeed, Roll paper stand
Paper path 2 Top-feed: semi-automatic feeding of single sheets or cut sheetfeeder for letterhead
Paper path 3 Rear-feed: extra flexibility: paper-park for easy switching between continuous forms and single sheets
Number of copies 6 (original + 5 copies)
Paper weight 34-90 g/m2
Standard paper handling Push-tractor rear-feed, Paper park feature, Easy tear-off without paper waste, Semi-automatic feeding of single sheets
Paper dimensions 76 – 254mm wide (continuous forms)
Printing Characteristics
Print speed(cps) Fastest: 570; High speed draft @ 10cpi: 507; Data/Letter quality @ 10cpi: 380/95
Printhead High durability 9 pin print head
Printing width 80 characters (10cpi), 160 characters (compressed mode)
Character pitch 10, 12, 15, 17 and 20 cpi
Built in barcodes Code 39, UPC-A, UPC-E, EAN 8, EAN 13, Interleaved 2 of 5, ZIP, Code 128
Fonts NLQ-Courier(Scalable), NLQ-Gothic(Scalable), OCR-B, High Speed Draft, Utility + Barcodes
Graphic resolution 244 x 216 dpi (max)
Memory 128Kb
First printable line 0.5mm from top of page
Font styles Emphasised, Enhanced, Double Width, Double Height, Italics
Ribbon life 4M characters
MTBF 20, 000 hours
Interfaces and Emulations
Interface Centronics parallel & USB
Emulation Epson FX, IBM ProPrinter, Microline
Optional interface(s) RS-232C serial, RS-422, Current loop
EU EMC Directive Warning! This product complies with EN55022 Class B. However when fitted with the optional network interface card or optional cut sheet feeder, compliance to EN55022 is Class A. In a domestic environment this configuration may cause radio interference, in which case the user may be required to take adequate control measures.
