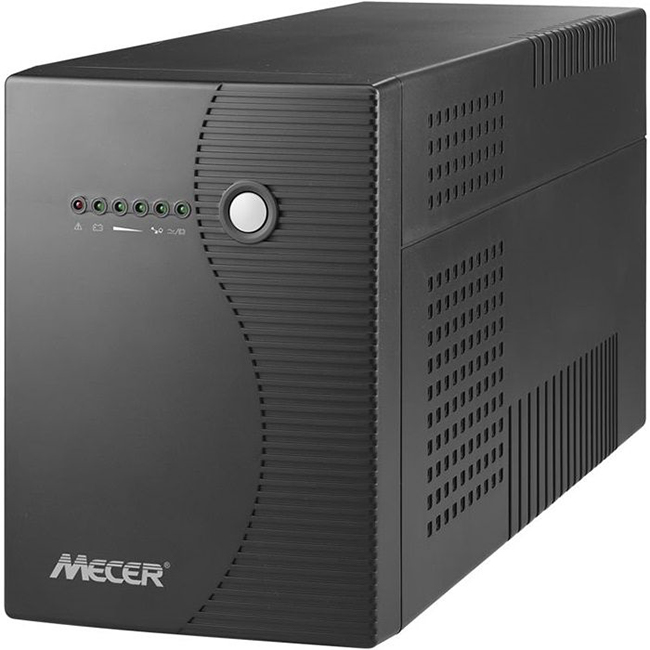

MECER ME-2000-VU 2000VA LINE INTERACTIVE UPS


Mecer 2000VA OFF-LINE UPS (with AVR,Monitoring Software + Cable & Built-in Surge Protection) – Black, No Power cable included

  • 2000VA line interactive UPS
  • Microprocessor control guarantees high reliability
  • Boost and buck AVR for voltage stabilization
  • Auto restart while AC is recovering
  • Simulated sine wave
  • Off-mode charging
  • Cold start function
  • USB communication port and RJ-11/RJ-45 protection
  • Overload, discharge, and overcharge protection
  • Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC
SKU: ME-2000-VU Categories: ,

Brand

Mecer

Product Code ME-2000-VUspacer
MODEL ME-2000-VU
CAPACITY 2000 VA / 1200 W
INPUT
Voltage 110/120 VAC or 220/230/240 VAC
Voltage Range 81-145 VAC / 162-290 VAC
Frequency Range 60/50 Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) ±10%
Frequency Range (Batt. Mode) 60 Hz or 50 Hz ±1 Hz
Transfer Time Typical 2-6 ms, 10ms max.
Waveform (Batt. Mode) Simulated Sine Wave
BATTERY
Battery Type & Number 12 V/9 AH x 2 or 12V CS/12V34HR x2 or other equivalent
Typical Recharge Time 4-6 hours recover to 90% capacity
INDICATORS
AC Mode
Green lighting The right green LED lighting & the 2nd to 5th green LEDs gradually lighting indicating load level
Battery Mode
Yellow flashing The right green LED lighting & the 2nd to 5th green LEDs gradually lighting indicating load level
Fault
Red lighting Red LED lighting
PROTECTION
Full Protection Overload, discharge, and overcharge protection
ALARM
Battery Mode Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
Battery Replacement Alarm Sounding every 2 seconds
Fault Continuously sounding
PHYSICAL
Dimension, D X W X H(mm) 397 x 146 x 205
Net Weight (kgs) 4.9
OPERATING ENVIRONMENT
Humidity 0-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 40dB
MANAGEMENT
Optional USB/RS-232 Port Supports Windows 2000/2003/XP/Vista/2008/7, Linux, Unix, and MAC
