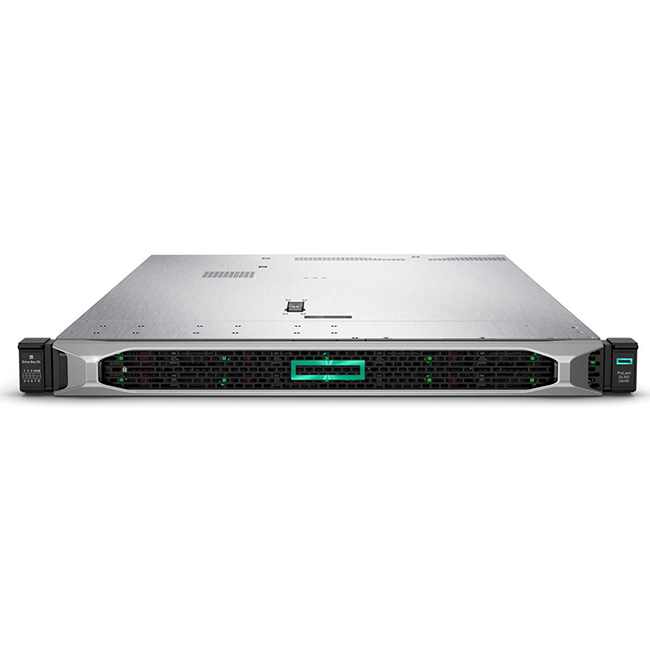

HP ENTERPRISE PROLIANT DL360 G10 (PO1880-B21)

Add to wishlist
Compare

The powerful HPE ProLiant DL360 Gen10 1U Rack server is redefining dense compute by delivering security, agility and unmatched expandability businesses want- all packed in a dense 1U rack design. Compared to the DL360 Gen9, the DL360 Gen10 provides double the capacity of NVDIMMs,supporting up to 192GB per system for outstanding performance. The server offers excellent expandability packed in a dense 1U rack design and an agile, secure infrastructure reducing the risk of cyber or physical attacks

HPE

Ideal for:

This server is ideal for diverse workloads in space constrained environments.

In the box:

HPE ProLiant DL360 Gen10 Rack 1U entry server with:

  • 1 x Xeon Bronze 3104 (6 core – 1.7 GHz)
  • 8 GB RDIMM 2R 2666 MT/s (1x 8 GB)
  • 331i -Embedded 4-port 1GbE
  • Embedded S100i SW RAID controller
  • 1 x 500w flex slot platinum power supply
  • 6-foot IEC C-13/C-14 jumper cord
  • CPU standard heatsink
  • LFF Easy Install w/o CMA
  • No drive
  • 4 LFF Hot Plug drive bays

Intel Xeon Scalable Bronze processor

Delivers entry performance for small business and basic storage servers. Hardware-enhanced reliability, availability, and serviceability features designed to meet the needs of these entry solutions.

Transform infrastructure management with InfoSight

HPE InfoSight, – a cloud-based infrastructure management using artificial intelligence (AI) first introduced on Nimble – now extends to HPE Gen10 servers at no additional cost. InfoSight analyzes and correlates millions of sensors from all deployed systems and continuously analyzes this data to identify and prevent problems, accurately predicts capacity, performance, bandwidth needs, and provides you with performance tuning, security recommendations, and parts dispatching.

Silicon Root of Trust

HPE Gen10 Servers’ exclusive security protection. With unique root of trust implementation, the server essential firmware is anchored to the iLO 5 silicon – an immutable fingerprint built into the server hardware that verifies all the firmware code is valid and uncompromised to guarantees that only valid and uncompromised firmware code can boot.

Innovative Design

The premium 10 SFF NVMe chassis backplane provides the ability to mix and match SAS/SATA and NVMe within the same chassis along with 8 + 2 SFF and 4 LFF chassis that supports new uFF and M.2 storage options

Flexibility and Choice

Unmatched expandability is packed in a dense 1U rack design with up to three PCIe 3.0 slots.

Secure Recovery

Allows server firmware to roll back to the last known good state or factory settings after detection of compromised code.

SKU: PO1880-B21 Categories: ,

Brand

HPE

Generic Info

Part #: P01880-B21
Brand: HPE
Model: Entry
Server series: HPE ProLiant DL360 Gen10
Form factor: Rack 1U
Manufacturer warranty:
3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response (Retail and Renew condition only)

Processor

Processor installed: 1 x 3104 (6-Core, 1.7 GHz, 85W) – standard heatsink
Number of CPU supported: 2
Processor family: Intel Xeon Bronze
Number of Core: 6
Base clock speed: 1.7 GHz
Max boost speed: 0.0 GHz
Cache: 8.25 MB (L3)
Thermal design power (TDP): 85.0 W
Chipset: Intel C621 Chipset
Graphics:
Integrated video standard
Video modes up to 1920 x 1200 @ 60 Hz (32 bpp)
16 MB Video Memory

Memory

Memory installed: 8 GB RDIMM 2R 2666 MT/s (1x 8 GB)
Memory operating speed: 2133 MT/s
Maximum memory capacity: 3.0 TB (24 x 128 GB LRDIMM @ 2666 MT/s)
Memory slot: 24 slots (12 DIMM slots per processor)
Memory protection: Advanced ECC, Online Spare

Storage

Chassis: 4 LFF Hot Plug
Hard drive included: none
Optical drive: none
Storage controller: Embedded S100i SW RAID
RAID level supported: RAID 0, 1, 5, and 10
Performance:: 6Gb/s SATA
Protocol supported type: SATA 6G

Networking

Network controller: 331i -Embedded 4-port 1GbE
Protocol: Ethernet
Ports: 4 x RJ 45
IEEE Compliance: 802.3, 2.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az, 1588, 802.1as,

Power and Cooling

Power supply:1 x 500W Flex Slot Platinum Power Supply
Rated Line Voltage: 100 to 120 VAC, 200 to 240 VAC
Fan: 5 – Standard

Software and Security

Management license:
v
Operating system supported:
Windows Server 2012 R2 (Most Recent Version), Windows Server 2016 (Most Recent Version), VMware ESXi 6.0 U3, VMware ESXi 6.5 and U1 upon release, Red Hat Enterprise Linux (RHEL) 6.9 and 7.3, SUSE Linux Enterprise Server (SLES) 11 SP4 and 12 SP2, ClearOS, CentOS,
Security:
UEFI Secure Boot, Immutable Silicon Root of Trust, Advanced Encryption Standard (AES), Triple Data Encryption Standard (3DES) on browser, TPM (Trusted Platform Module) 1.2, TPM (Trusted Platform Module) 2.0
Server Ultility Software:
Active Health System, Smart Update, iLO Amplifier Pack, HPE iLO Mobile Application, RESTful Interface Tool, Scripting Tools, HPE OneView Standard, HPE SIM

Slots and interface

Expansion slots:
2 PCIe: 1 x16 FH / 1 x8 LP
Ports:
Serial: 1 port – Optional
Display port: 1 Front – (optional 8 SFF and 4 LFF only)
VGA port: 1 rear (standard on all chassis types)
Network port: 4x 1GbE embedded NIC (standard on all chassis types)
FlexibleLOM slot: 1 – available on all chassis types
iLO Remote Mgmt Port: 1 Gb Dedicated
MicroSD Slot: 1
USB 3.0: 5 total – 1 front, 2 rear, 2 internal (standard on all chassis types)

Miscellaneous

Operating Environment:
Relative Humidity: 8% to 90%
Altitude: 3050 m (10,000 ft)
System Inlet Temperature: 10° to 35°C (50° to 95°F)
Industry Standard Compliance:
ACPI 6.1, PCIe 3.0, WOL Support, Microsoft Logo certifications, PXE Support, USB 3.0, USB 2.0,(only on optional Universal Media Bay), SMBIOS 3.1, UEFI 2.6 (Unified Extensible Firmware Interface Forum), Redfish API, IPMI 2.0, Secure Digital 4.0, TPM 1.2 and 2.0 support, Advanced Encryption Standard(AES), Triple Data Encryption Standard(3DES), SNMP v3, TLS 1.2, DMTF Systems Management Architecture for Server Hardware Command Line(SMASH CLP), Active Directory v1.0, ASHRAE A3/
Weight and Dimensions:
Dimensions (H x W x D): 1.69 x 17.11 x 29.5
in 4.29 x 43.46 x 74.98 cm
Weight (approximate): 37 lb (16.78 kg)
