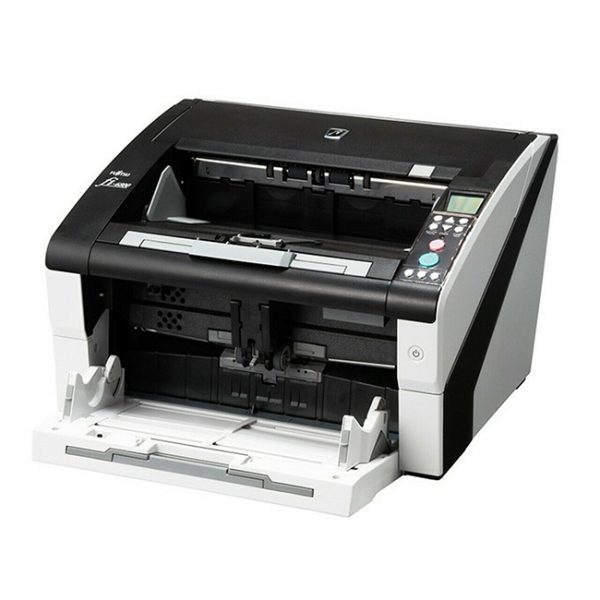

FUJITSU FI-500 A3 SHEET-FEED SCANNER

Supported operating systems
Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008

Scanner type
ADF (Automatic Document Feeder) + Manual Feed

Scanning modes
Simplex / Duplex, Color / Grayscale / Monochrome

Image sensor type
Color CCD (Charge-coupled device) x 2 (front x 1, back x 1)

Light source
White LED array

Multifeed detection
Ultrasonic multi-feed detection sensor x 3, Paper detection sensor

Document size
Maximum
A3 Portrait (297 x 420 mm or 11.7 x 16.5 in.)
Double letter (279.4 x 431.8 mm or 11 x 17 in.)

Minimum
A8 Portrait (52 x 74 mm or 2 x 3 in.)

Long paper scanning (Maximum)
up to 3,048 mm (120in.)

Paper weight (Thickness)
Less than A5 size: 0.050 to 0.25 mm (41 to 209 g/m², or 11 to 56 lb)
A4 to A5 size: 0.025 to 0.25 mm (20 to 209 g/m², or 5.4 to 56 lb)
Over A4: 0.050 to 0.25 mm (41 to 209 g/m², or 11 to 56 lb)

Scanning speed (A4 (Letter) Landscape)
Simplex: 100 (100) ppm @ 200/300 dpi
Duplex: 200 (199) ipm @ 200/300 dpi

Scanning speed (A4 (Letter) Portrait)
Simplex: 85 (87) ppm @ 200/300 dpi
Duplex: 170 (174) ipm @ 200/300 dpi

ADF Capacity
500 sheets (A4/Letter: 80 g/m² or 20 lb)

Background colors
White / Black (Selectable)

Optical resolution
600 dpi

Expected Daily Volume
91,000 sheets

Output Resolution
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)

Output format
Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit

Internal video processing
1,024 levels (10-bit)

Interface
USB2.0

Connector shape
B type
Image processing functions
Auto color detection, Automatic page size detection, De-skew, Automatic orientation, Upper lower separation, Multi-image output, Blank page skip, Error diffusion, Dither, Dropout color (R, G, B, None, White, Specified, Saturation), Image emphasis, Simplified DTC, Advanced DTC, iDTC, sRGB

Power requirements
AC 100 to 240 V ±10 %

Power consumption
Operating: 200 W or less
Sleep mode: 3.2 W or less
Auto Standby (OFF) mode: Less than 0.5 W

Operating environment
Temperature:
15 to 35 °C (59 to 95 °F)

Relative humidity:
20 to 80% (Non-condensing)

Dimensions: Width x Depth x Height
460 x 430 x 310 mm (18.1 x 16.9 x 12.2 in.)

Installation space:
860 x 1,630 x 350 mm (33.8 x 64.1 x 13.7 in.)

Weight
32 kg or less

Included software / drivers
PaperStream IP driver (TWAIN/TWAIN x64/ISIS), WIA Driver(11), PaperStream Capture, 2D Barcode for PaperStream(12), Software Operation Panel, Error Recovery Guide, Scanner Central Admin

Environmental compliance
ENERGY STAR® / RoHS

Included items
AC cable, USB cable, Setup DVD-ROM

Options
Post Imprinter (Front-side) and Post Imprinter (Back-side), PaperStream Capture Pro
