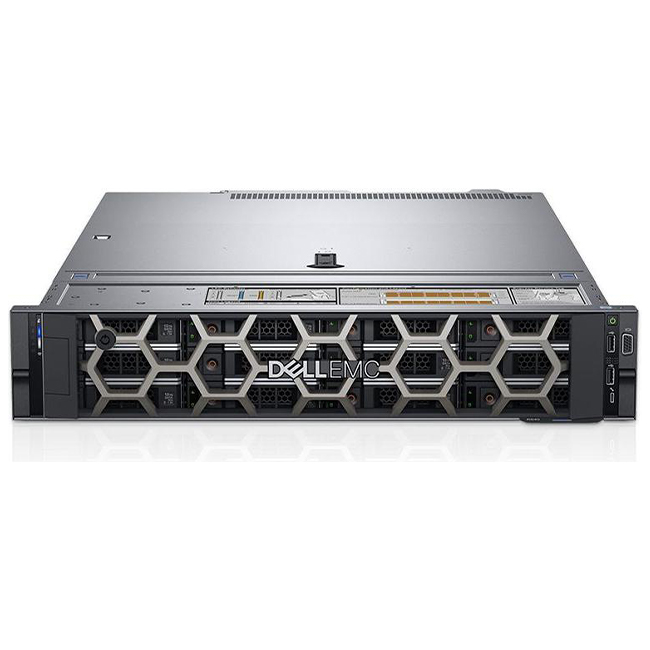

DELL POWEREDGE R540 2U RACK SERVER (SVDEPER540SAM1)


Dell PowerEdge R540 2U Rack Server, Intel Xeon Silver 4208 2.1Ghz up to 3.2Ghz 11MB Cache Eight (8) Core Processor with no intergrated graphics, On-Board LOM Dual Port 1GBE, 1x 16GB RDIMM 2666MT/s Dual Rank memory, 1x 4TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-plug Hard Drive, No Internal Optical Drive, PERC H730P RAID Controller 2GB NV Cache Adapter Low Profile, 3.5″ Chassis with up to 12 Hot Plug Hard Drives, 2U Standard Bezel, iDRAC9 Enterprise, Single Hot-plug Power Supply 750W, 2x C13 to C14 PDU Style 10 AMP 6.5 Feet (2m) Power Cord, No Rail Kits or Cable Management Arm, No Operating System

Overview:

PowerEdge R540 Rack Server –¬†Flexible by design
Adapt to a variety of application demands with a 2-socket, 2U rack server that offers an ideal balance of resources and affordability.

Features:

Power your applications with a versatile 2-socket rack server
Satisfy a variety of applications with the flexible PowerEdge R540. Its balanced combination of resources, expandability and affordability adapt to the changing demands of a modern data center. Optimize your application performance with one-button tuning. Scale for future requirements with up to 14 x 3.5″ drives. Embedded diagnostics and SupportAssist help to maximize uptime without added effort, in a worry-free environment.

Ideal for:

  • Virtualization
  • Mail
  • Messaging
  • Video streaming

Achieve performance at scale with the PowerEdge portfolio
Our modern compute platforms are built to scale easily and take advantage of technologies that lift application performance. The PowerEdge R540 rack server combines affordably and versatility, so you can adapt to a variety of applications and meet future demands.

  • Scale compute resources with the Intel Xeon Scalable processor family that delivers a 27% increase in processing cores and 50% increase in bandwidth over the previous generation of processors.
  • Optimize application performance with one-button tuning.
  • Enable storage flexibility with up to 14 x 3.5″ drives.
  • Free up storage with boot-optimized M.2 SSDs.

Gain productivity with intelligent, embedded management
Dell EMC OpenManage intelligent automation enables you to spend less time on routine maintenance so you can focus on business-critical priorities.

  • Help maximize uptime with proactive diagnostics and automated remediation that increase productivity up to 90%.
  • Leverage existing management consoles with easy integrations for VMware vSphere, Microsoft System Center and Nagios.
  • Improve productivity with agent-free Dell EMC iDRAC9 for automated management.
  • Simplify deployment with OpenManage next-generation console and server profiles to fully configure and prep servers rapidly and scalably.

Fortify your data center with comprehensive protection
A comprehensive, cyber-resilient architecture with security embedded into every server helps to protect your data.

  • Protect server configuration and firmware from malicious changes with new Configuration Lock-down.
  • Use system erase of local storage to help ensure data privacy when you repurpose or retire servers.
  • Automate updates that check file dependencies and proper update sequence, before deploying them independently from the OS/hypervisor.
  • Take control of your firmware consoles with embedded authentication that is designed to allow only properly signed updates to run.
SKU: SVDEPER540SAM1 Categories: ,

Brand

Dell

Product Code SVDEPER540SAM1spacer
Processor Up to two Intel Xeon Scalable processors, up to 20 cores per processor
Memory 16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 512GB max
Storage Controllers Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
Drive Bays Front drive bays: Up to 12 x 3.5″ SAS/SATA HDD max 120TB
Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD
Optional DVD-ROM, DVD+RW
Power Supplies Titanium 750W, Platinum 495W, 750W, and 1100W
240HVDC 750W
Fans Hot plug power supplies with full redundancy option
Dimensions Form factor
2RU
Chassis depth
Max depth: 707.74 mm (w/bezel)
Max depth: 693.81 mm (w/o bezel)
Embedded Management IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Basic, Express, Enterprise)
Quick Sync 2 wireless module optional
Bezel Optional LCD bezel or security bezel
OpenManage Software OpenManage Enterprise
OpenManage Essentials
OpenManage Mobile
OpenManage Power Center
I/O and Ports Network options
2 x 1GE LOM
(optional) OCP 2 x 10GE SFP+ or BaseT or 2 x 1GE
Front ports
Video, 1 x USB 2.0, dedicated IDRAC Direct USB
Rear ports
Video, serial, 2 x USB 3.0, dedicated iDRAC network port
PCIe
Non rear storage config:
1 x FH/FL + 1 x HH/HL (2U Right riser) slots + 3HH/HL slots
Rear storage config:
1 x HH/HL (1U Left Riser) + 1 x HH/HL (1U Right risers) slot or 1 x HH/HL (1U Left Riser) + 1 x FH/HL (1U Right riser)
Supported Operating Systems Canonical Ubuntu LTS
Citrix XenServer
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
Recommended Support Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information
Management Embedded / At-Server
iDRAC9 with Lifecycle Controller (Express, Enterprise)
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Dell Repository Manager
Dell System Update
Dell Server Update Utility
Dell Update Catalogs
OpenManage Integrations
Microsoft Systems Center
VMware vCenter
BMC software (available from BMC)
OpenManage Connections
Nagios Core and Nagios XI
Oracle Enterprise Manager
HPE Operations Manager i (OMi)
