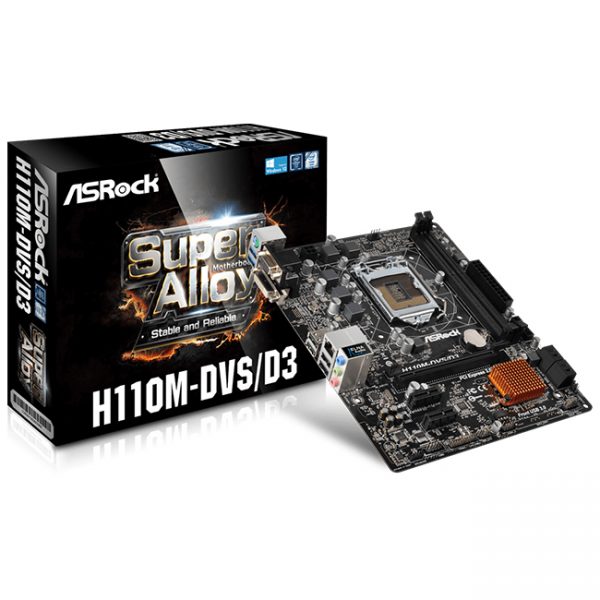

ASROCK H110M-DVS/D3

Add to wishlist
Compare
  • Brand.ASROCK – Model.H110M-DVS/D3 – CPU Support.- Supports 6th Generation Intel? Core? i7/i5/i3/Pentium?/Celeron? Processors – Supports Intel? Turbo Boost 2.0 Technology – Socket.Socket 1151 – Chipset.- Intel? H110 – RAM.- Dual Channel DDR3/DD

  • ASRock Super Alloy
  • Supports 7th and 6th Generation Intel® Core™ Processors (Socket 1151)
    *8th Gen Intel® Core™ desktop processors are supported with Intel® 300 Series chipset motherboards only
  • Supports Dual Channel DDR3/DDR3L 1866(OC)
  • 1 PCIe 3.0 x16, 2 PCIe 2.0 x1
  • Graphics Output Options: DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 4 SATA3
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • Supports Full Spike Protection, ASRock Live Update & APP Shop
SKU: 7100+H110-D3 Categories: ,
Model
Brand ASRock
Model H110M-DVS/D3
Supported CPU
CPU Socket Type  LGA 1151
CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU Technologies Turbo Boost Technology 2.0
Chipsets
Chipset  Intel H110
Onboard Video
Onboard Video Chipset  Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530
Pixel Shader 5.0, DirectX 12
Max. shared memory 1024MB*
Dual graphics output: Support DVI-D and D-Sub ports by independent display controllers
Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
Supports Accelerated Media Codecs: HEVC, VP8, VP9
Supports HDCP with DVI-D Port
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

* The size of maximum shared memory may vary from different operating systems.
** Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
*** Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit.
**** Intel InTru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit.
Memory
Number of Memory Slots 2×240pin
Memory Standard DDR3/DDR3L 1866(OC)/ 1600/ 1333/ 1066
Maximum Memory Supported 32GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*

* Supports NVMe SSD as boot disks
PCI Express x1 2 x PCI Express 2.0 x1 Slots
Storage Devices
SATA 6Gb/s  4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Onboard Audio
Audio Chipset  Realtek ALC887
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2  1 x PS/2 keyboard/mouse port
Video Ports 1 x D-Sub Port
1 x DVI-D Port
RJ45 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.0  2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
USB 1.1/2.0 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
Audio Ports HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Other Connectors 1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
1 x Chassis Fan Connector (4-pin)
1 x 24-pin ATX Power Connector
1 x 4-pin 12V Power Connector
1 x Front Panel Audio Connector

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
Physical Spec
Form Factor Micro ATX
Power Pin 24 Pin
Features
Features Unique Feature:
ASRock Super Alloy
– High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop

BIOS:
– 128MB AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO, VCCSA Voltage Multi-adjustment

Software:
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)*
*These utilities can be downloaded from ASRock Live Update & APP Shop.

UEFI:
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI Tech Service
– ASRock Easy Driver Installer

Support CD:
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor:
– CPU/Chassis temperature sensing
– CPU/Chassis Fan Tachometer
– CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU/Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS:
– Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*
*To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please see our online tutorial or check our User Manual for more detailed instructions.
For the updated Windows 10 driver, please visit ASRock’s website for details.

Certifications:
– FCC, CE, WHQL
– ErP/EuP ready (ErP/EuP ready power supply is required)
Packaging
Package Contents Accessories:
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
