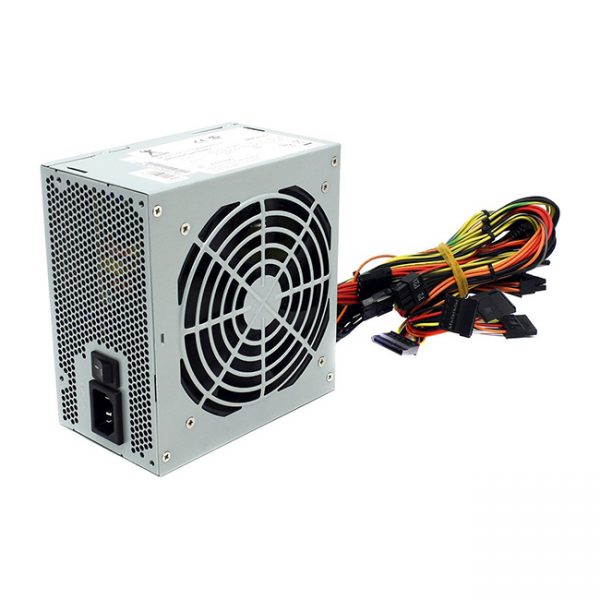

600W Universal ATX 2.2 (SABS) power supply unit
ACCESSORIES, PSU
600W UNIVERSAL ATX 2.2 (SABS) POWER SUPPLY
- Multiple +12V Output
- Smart Thermal Control to Balance Noise & Cooling
- 120mm Cooling Fan
- 6 Pin for PCI-E VGA Card (350W ~ 500W)
- 6+2 Pin for PCI-E VGA Card (600W Only)
- MTBF 100KHRs @ 25°C per MIL-STD-217D/F
- Operating Ambient +10°C Minimum to +40°C Maximum
- Meets Intel® Haswell Processors Requirements
- ErP Lot 6 Compliant
- Dimensions: 150(W) X 140(L) X 86(H) mm
|
Model No.
|
Max. Output | AC Input | PFC |
Max. Output Current
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| +12V1 | +12V2 | +12V3 | +12V4 | +5V | +3.3V | -12V | 5VSB | MAX1 | MAX2 | MAX3 | ||||
| IP-S350BQ3-3 | 350W | 200-240V | Active | 16A | 16A | N/A | N/A | 15A | 21A | 0.3A | 2.5A | 110W | 288W | 350W |
| IP-S450BQ3-3 | 450W | 200-240V | Active | 18A | 18A | N/A | N/A | 15A | 24A | 0.3A | 2.5A | 130W | 384W | 450W |
| IP-S500BQ3-3 | 500W | 200-240V | Active | 18A | 18A | N/A | N/A | 15A | 24A | 0.3A | 2.5A | 130W | 432W | 500W |
| IP-S600BQ3-3 | 600W | 200-240V | Active | 18A | 18A | 18A | 18A | 15A | 24A | 0.3A | 2.5A | 130W | 528W | 600W |
