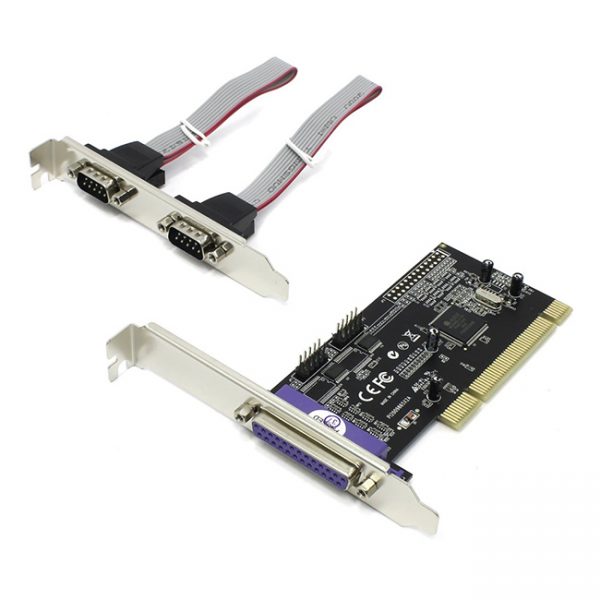

2-PORT SERIAL & 1-PORT PARALLEL PCI ADAPTER CARD (I-420 )

• Compliant with PCI Local Bus Specification, Revision 2.3
• Supports 2 x UART serial ports
• Add one IEEE 1284 Parallel Port on system
• Easy Plug and Play
• Automatically selects IRQ & I/O address
• Built-in 16C450/550 compatible UART
• On chip 256 byte FIFOs in transmit and receive path of each serial port
• Serial data transfer rate up to 115200bps
• Supports Standard Parallel Port (SPP), Enhanced Parallel (EPP) & Enhanced Capability Port (ECP)
• arallel data transfer rate up to 1.5Mbytes/sec
• Windows® 2000, XP/2003 32/64 bit, Vista 32/64 bit, 7 32/64 bit
• Bus: PCI 32-bit
• Connectors: 2 x DB9 male serial connectors, 1 x DB25 female parallel connector

System Requirements:

• Windows® 2000, XP/2003 32/64 bit, Vista 32/64 bit, 7 32/64 bit
• Available PCI slot
